ITC - Mic Pre Processor - TS-211
ITC - Mic Pre Processor - TS-211
* 96k Hz sampling frequency, 24-bit A/D and D/A converter, 32-bit DSP processor.
* 3 1/ 4" inputs with automatic audio signal detection, providing groups of five mic input, standard and 5.1 channel output.
* USB cable provided for connection to PC. Also provided is a remote control (infrared).
* Directly to use the function keys on front panel or Connecting with PC to operate the device
* 10 typed of storable user programs are present (with 10 factory-presets downloaded from the factory).
* Included is a parameter lock function (with password) in order to avoid unwanted ot unauthorized changes to settings.
* Each output channel comes with 7 bands of individual parametric EQ (including a high-pass and low-pass filter, 4 kinds of slopes and an adjustable gain (-30db to +15db).
* LCD screen and a 7 band-LED digital level meter (shows status of input, output, mute and edit).
* Delay ,phase-control and mute adjusting are available for each input and output channel. The delay offer a maximum of 60ms.
* An adjustable effects channel, microphone-volume, background-music volume are present.
* Microphone channels come with 4 levels of anti-feedback functions. Both microphone and music signals include a noise gate.
* Special-effects come with 3-bands parametric EQ .The ratios between echo & reverb can be adjusted.
Features:
· 96KHz sampling frequency, 32-bit DSP processor, 24-bit A/D and D/A converter.
· Selectable audio signal input one from four, each analog audio signal input sensitivity can be selected providing three groups of Mics input, standard 5.1 sound channel output.
· Provide USB port, WIFI or wired network port are connected to PC by externally connecting to WIFI controller （TS-880SU）with serial port to remotely control and infrared control .
· Directly to use the function keys on front panel or Connecting with PC to operate the device.
· Rotate the knob on the front panel directly, can control the mic volume, effect volume, music volume, master volume.
· A single unit provides 20 groups devices data storage, provides 10 groups effect data storage, can be replicated between devices by PC software.
· User can set the password to limit the parts or whole functions by the "system" key on the panel, avoid non-workers' operation to damage the machine's working status.
· Using character LCD screen and 6-segment LED displaying input / output precision digital level meter, mute and edit state.
· Each input/output both delay and phase control and mute settings, input delay of up to 30ms, the output delay of up to 60ms.
· The output channel also can control the effect ratio of the channel, mic volume, music volume and effect volumes.
· Effect with three-band parametric equalizer, and 1 pair high and low pass filter, Echo and effects specific parameters can be adjusted.
· User can control the main parameters of the channel through the S terminal connection to the matrix.
· Microphone with four levels of anti-whistle function.
Specifications:
|
Ouput Channel and Socket |
5.1 sound channel |
|
Input Channel and Socket |
5.1 sound channel and XLR male socket (one pair main sound channel, one pair surround, one middle and one super-bass) |
|
Input Impedance |
Balanced: 20KΩ |
|
Output Impedance |
Balanced: 100Ω |
|
PC Port |
One USB Com Port on front panel ( USB3.0 control interface can be extended to WIFI Control Interface) two RS485 ports in rear panel (RJ45 Block) |
|
CMRR |
>70dB (1KHz) |
|
Input Range |
≤+25db |
|
Frequency Response |
20Hz~20KHz (±0.5db) |
|
S/N Ratio |
≥95dB @ 1KHz 0dBu |
|
THD |
<0.01% OUTPUT=0db/1KHz |
|
Crosstalk of Channels |
>80db (1KHz) |
|
Functions of Input Channels |
|
|
Input Mute |
Each channel has independent mute control |
|
Input Gain |
Music and mic has independent volume adjustment, range: 0%-100%, step-over @1% |
|
Input Delay |
Each channel has independent delay control, range: 0—30ms, <10ms, step-over @0.1ms. >10ms, step-over @1ms |
|
Input Polarity |
Same phase (+) or reversed phase (-) |
|
Input EQ |
Music and mic inputs come with 9
bands of individual parametric EQ. Central frequency point: 20Hz to 20KHz,
Bandwidth: 0.01oct to 3oct, Step-over is 0.01oct. |
|
Limiter |
Both music and mic have independent limiter control, -30db to +20dB, step-over,0.1db |
|
Feedback |
Mic comes with 4-levels anti-feedback functions |
|
Noise Gating |
Open range -119 dBu to -10 dBu, step-over 1 dBu |
|
Input Selection |
4 Optional music signal inputs, 2 analog sensitivity options, a plurality of optical fibers, a group of coaxial |
|
Functions of Output Channels |
|
|
Output Mute |
Each channel has independent mute control |
|
Output Polarity |
Same phase (+) or reversed phase (-) |
|
Output Gain |
Each channel has independent gain control. Adjustable range 0%-100%, step-over 1% |
|
Output Delay |
Each channel has independent delay control, range: 0—60ms, step-over 0.1us @<10ms; step-over 1ms@>10ms |
|
Crossover |
Each channel can set up LPF and HPF
independently, with adjustable parameters: Filter types:
Linkwitz-Riley/Besse/Butterworth |
|
Limiter |
Each channel can set up limiters independently with adjustable parameters: Threshold value: -30db to +20db; Step-over: 0.1dBu |
|
Output EQ |
Each output channel can be set up
with 7 bands of parametric EQ. Center frequency: 20Hz-20KHz Bandwidth:
0.01oct-3 oct, step-over of 0.01oct gain: -30dB- + 15dB, |
|
Effectors |
Double effectors, 1M memory capacity to ensure real treatment effect, and with 3-band parametric equalizer, the effect ratio can be adjusted |
|
Processor |
96KHz sampling frequency, 32-bit DSP, 24-bit A/D and D/A switching |
|
Display |
Resolution of 144x32 character LCD and 7-segment LED display for accurate digital input and output level meter, mute and edit status |
|
Power |
≤30W |
|
Power Supply |
~110-220V 50/60Hz |
|
Product Dimension (W x D x H) |
482 x 230 x 44mm |
|
Net Weight |
4.5Kg |
Accessories Products

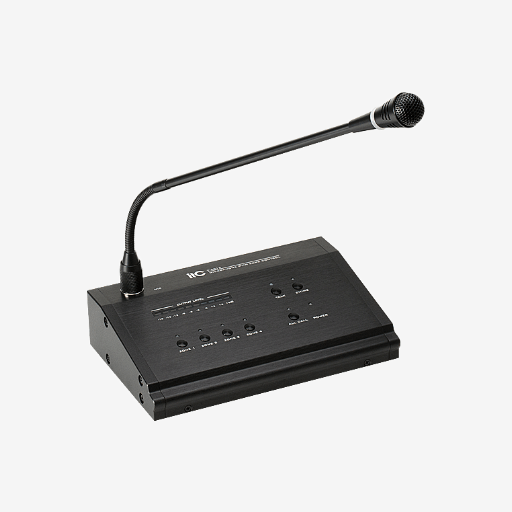

ITC T-318 Microphone with Zone Control
