ITC TS-200PI Precise Series Professional Power Amplifier
ITC TS-200PI Precise Series Professional Power Amplifier
1) With 3 level switcher to adjust sensitivity.
2) 3 modes of operating: bridged, stereo and in parallel.
3) Ground pin of input socket could be both ground connected and suspended.
4) With dual-purpose socket of canon and 6.35 input.
5) Support LINK output coming from CH A and CH B
6) With complete indicators for signal, protection status, limiter status and power status.
7) CH A and CH B have individual volume control.
8) 3 kinds of output: CH A output, CH B output and Bridged SPEAKON output.
9) With complete protection for short, overload, over-heat, etc
Feature:
· Industrial modeling aluminum panel, durable design, removable and washable dust-proof mesh and cooling vents.
· Soft starter can prevent absorbing large currents into the power grid when starting up and interfering with other electrical devices.
· Intelligent forced heat dissipation design, low fan noise, high dissipation efficiency, etc.
· 2-channel amplifier with three options of input sensitivity, support a wide range of signal source input.
· Comprehensive and reliable security protection measures and working status indicator (short circuit, overload, DC and overheat protection, transformer
· overheat protection).
· Built-in intelligent clipping limiter controls the power module and the speaker system to work in a safe range.
· Standard XLR+TRS1/4" composite multi-function input interface, simple interface design is more convenient for different users.
· High quality transformer, low resistance and large capacity electrolytic filter, make large dynamic work smooth.
· Suitable for different places, stereo mode or bridge mode are optional.
· With grounded input pin and suspension control.
Technical Specs
|
Model |
TS-200PI |
|
Output power (20-20KHz/THD≤1%) stereo/parallel 8Ω X 2 |
200W×2 |
|
Output power (20-20KHz/THD≤1%) stereo/parallel 4Ω X 2 |
300W×2 |
|
Bridge 8Ω |
600W |
|
Connection |
XLR, TRS interface |
|
Voltage gain (@1KHz) |
32dB |
|
Input sensitivity |
0.775V/1V/1.44V |
|
Input impedance |
10KΩ unbalanced, 20KΩ balanced |
|
Frequency response(@ 1W power) |
20-20KHz/+0/-2dB |
|
THD+N(@1/8 power) |
≤0.05% |
|
SNR (A-weighted) |
≥90dB |
|
Damping coefficient(@ 1KHz) |
≥200@ 8Ω |
|
Resolution (@1KHz) |
≥80dB |
|
Protection method |
Over current protection, DC protection, short circuit protection |
|
|
|
|
Indicator |
Power, protection, distortion |
|
Cooling method |
Fan cooling |
|
Power supply |
~220 50Hz |
|
Maximum power consumption |
900W |
|
Size |
483×394×88mm |
|
Weight |
11.2Kg |
Alternative Products

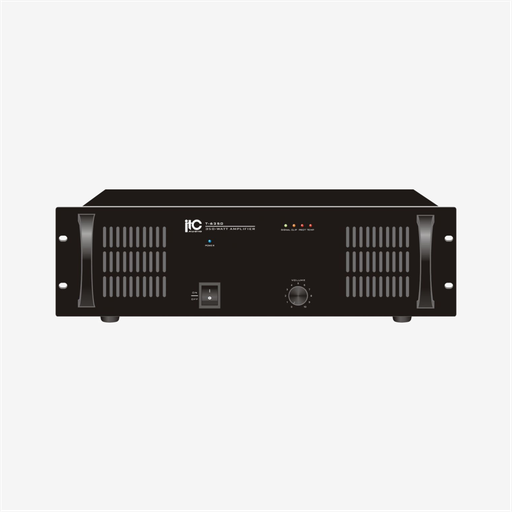

ITC - Series 350W 500W 650W Mono Public Address Sound Power Amplifier - T-6350
Accessories Products
ITC T-104 Ceiling Speaker (1.5W,3W,6W)

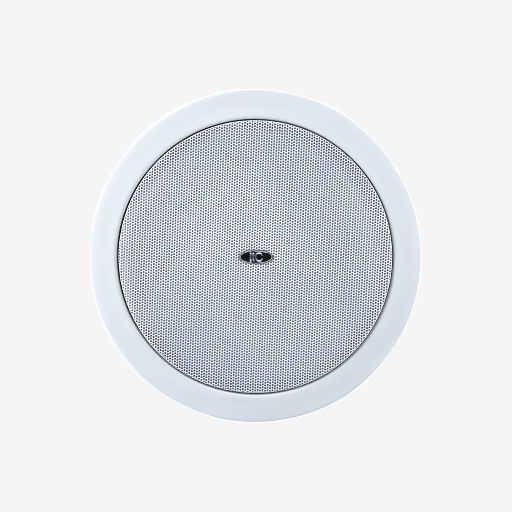

ITC T-105R Ceiling Loudspeaker (1.25W,2.5W,5W,10W)
