Features

·         10/100/1000Mbps Ethernet

·         1000 BASE-SX/LX optical port

·         Automatic MDI/MDI-X crossover

·         SNMP management optional

·         Internal Power supply optional

·         10/100/1000 BASE-T/TX electrical port

·         No in-field optical adjustments required

·         Optical port supports 1000Mbps full duplex data

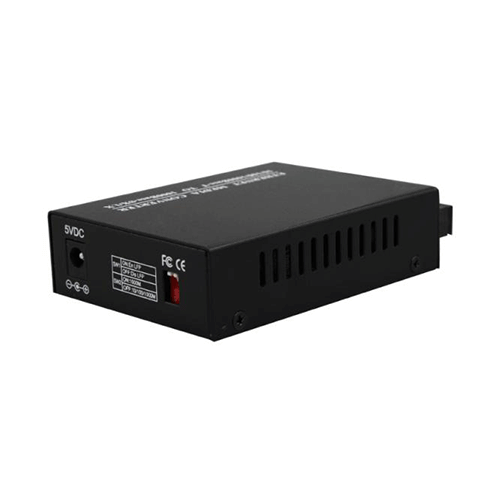

·         Provides DIP switch for LFP function (Disable / Enable) setting

·         Distances up to 2km for Multi-mode; Up to 120km for Single mode

·         Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data.

·         Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX

·         Voltage transient protection on all power and signal input. output lines provide unconditional protection from power surges and other voltage transient events

Application

·         LAN/WAN

·         Access Control Systems

·         10/100/1000 Mbps Ethernet

·         High Speed Computer Links
