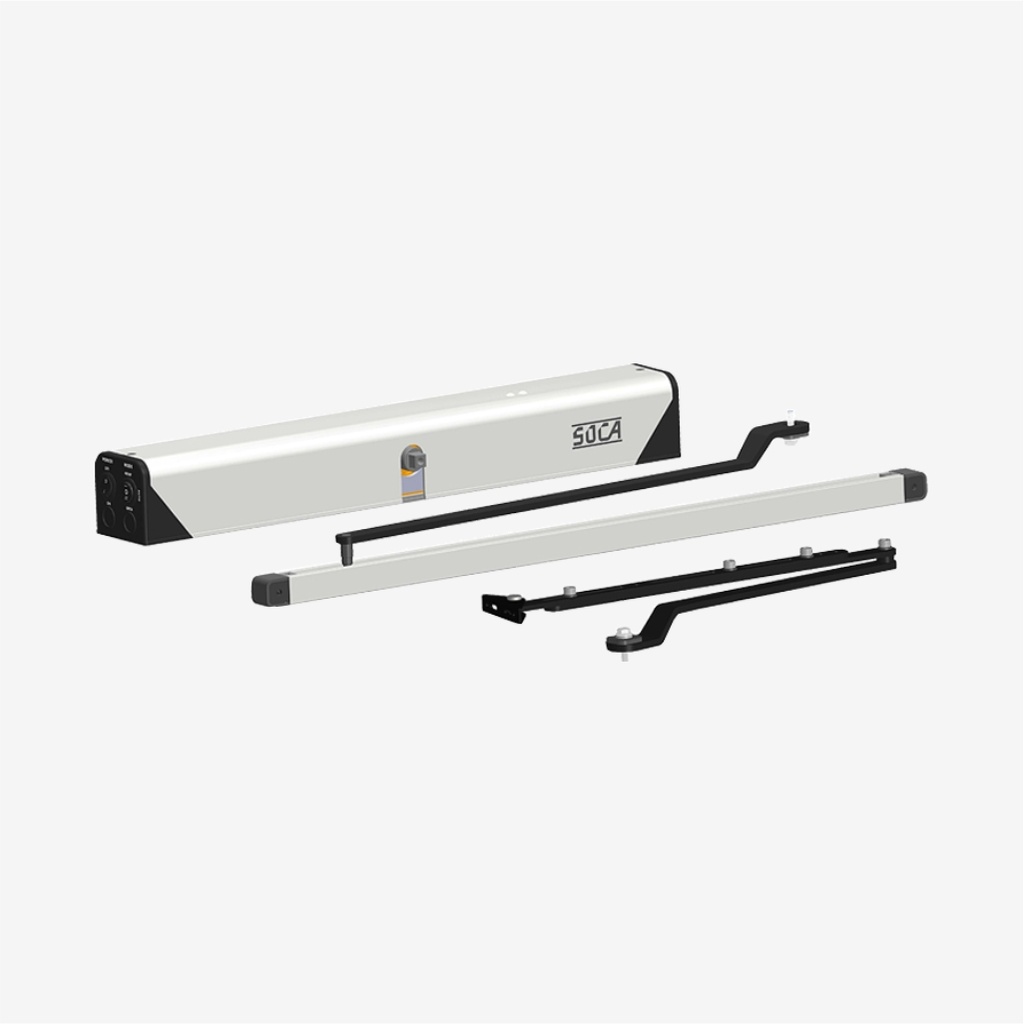

    Soca SDO-501A Automatic Door Operator

    Soca SDO-501A Automatic Door Operator

    1

    MVR 7,110.00 MVR 7,110.00 7110.0 MVR

    MVR 7,110.00

    0% Off
    Days
    :
    Hours
    :
    Mins
    :
    Secs

      This combination does not exist.

      SKU:
      N/A
      • 30-day money-back
      •  7-day returns
      • Shipping: 2-3 Days
      Share :

      Features:

      ·         Built-in Bluetooth, advanced fine-turning settings using APP interface.

      ·         One key to start automatic learning positioning. Easy to install without complicated setting procedures.

      ·         Two types of force arm to select to solve the gap between the door frame and the door leaf within 30cm.

      ·         Provide automatic self-closing function, without touching the doorknob for accessing move conveniently.

      ·         It is available to install on door frame or door leaf. Move flexibility of  installation for more complicated.

      ·         Optional 2.4G automatic door access control transmitter or 315/433 MHz controller available to purchase to provide  long distant door open function.

      ·         Centered double-sided output shaft available to select output position according to the environment. Optional door loop to protect external circuit available to purchase.

      ·         Chute lever arm using balls shaft to reduce noise and extend its service life. Patented roller design to allow larger installation error or flatness of door leaf and door frame.



      More Information

      SDO-501A

      Track set , 433MHz remote control included

      Power Supply

      90-264V AC 50/60 Hz

      Power Consumption

      Max 72W (3A@DC24V)

      Application

      Door opening angle : 90~120°
      Door weight : within 100Kg
      Door width : 81~120CM

      Reveal depth

      Pull arm : suitable for reveal depth between 0~15 cm
      Push arm : suitable for reveal depth between 10~30 cm

      Frequency

      315/433MHz(transmitter)/2.4GHz(bluetooth)

      Transmitter Capacity

      750 transmitters(optional)

      Buzzer

      Built-in buzzer

      Input Point

      Door open contact×2/ ock status/ 24VDC supply back-up/ safty sensor X2 slave door contact

      Output Point

      Electrolock output contacts (NO/NC/COM)/ 0.5A@DC24V

      Historical Data

      5000 records (available to inquire from App)

      Operating Mode

      Always open /always close/one way /fully automatic

      Status Display

      Dual-LED×2 (action/communication indicator)

      Parameter Adjustment (APP)

      Opening speed, closing speed. Buffer position and speed, pause time, Door opening reversal time/ strength, wind resistance, push mode, arm type, 4 adjustable modes

      Dimensions

      525(L)×74(W)×70(H) (mm)

      Weight

      5000(g)




      Features:

      ·         Built-in Bluetooth, advanced fine-turning settings using APP interface.

      ·         One key to start automatic learning positioning. Easy to install without complicated setting procedures.

      ·         Two types of force arm to select to solve the gap between the door frame and the door leaf within 30cm.

      ·         Provide automatic self-closing function, without touching the doorknob for accessing move conveniently.

      ·         It is available to install on door frame or door leaf. Move flexibility of  installation for more complicated.

      ·         Optional 2.4G automatic door access control transmitter or 315/433 MHz controller available to purchase to provide  long distant door open function.

      ·         Centered double-sided output shaft available to select output position according to the environment. Optional door loop to protect external circuit available to purchase.

      ·         Chute lever arm using balls shaft to reduce noise and extend its service life. Patented roller design to allow larger installation error or flatness of door leaf and door frame.



      More Information

      SDO-501A

      Track set , 433MHz remote control included

      Power Supply

      90-264V AC 50/60 Hz

      Power Consumption

      Max 72W (3A@DC24V)

      Application

      Door opening angle : 90~120°
      Door weight : within 100Kg
      Door width : 81~120CM

      Reveal depth

      Pull arm : suitable for reveal depth between 0~15 cm
      Push arm : suitable for reveal depth between 10~30 cm

      Frequency

      315/433MHz(transmitter)/2.4GHz(bluetooth)

      Transmitter Capacity

      750 transmitters(optional)

      Buzzer

      Built-in buzzer

      Input Point

      Door open contact×2/ ock status/ 24VDC supply back-up/ safty sensor X2 slave door contact

      Output Point

      Electrolock output contacts (NO/NC/COM)/ 0.5A@DC24V

      Historical Data

      5000 records (available to inquire from App)

      Operating Mode

      Always open /always close/one way /fully automatic

      Status Display

      Dual-LED×2 (action/communication indicator)

      Parameter Adjustment (APP)

      Opening speed, closing speed. Buffer position and speed, pause time, Door opening reversal time/ strength, wind resistance, push mode, arm type, 4 adjustable modes

      Dimensions

      525(L)×74(W)×70(H) (mm)

      Weight

      5000(g)
