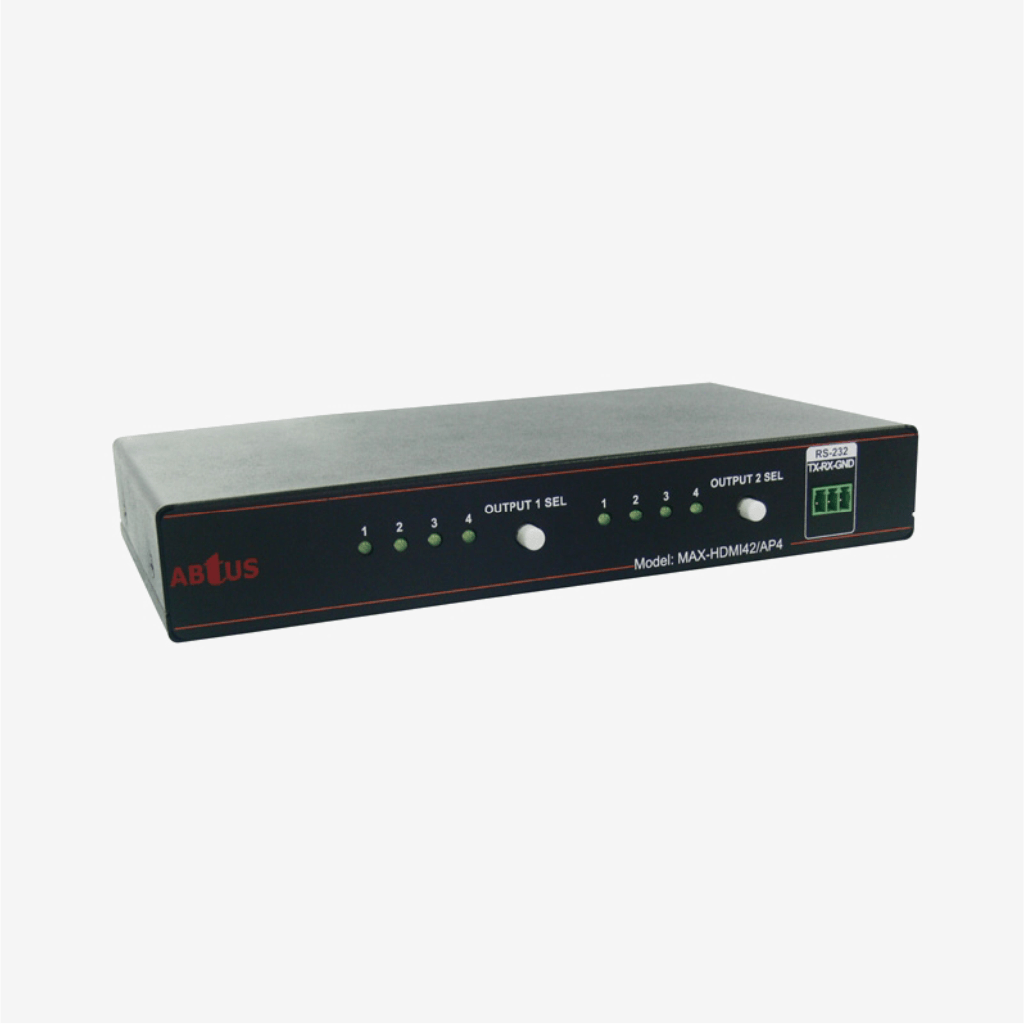

Abtus 4 in 2 out HDMI Matrix Switcher
Abtus 4 in 2 out HDMI Matrix Switcher
HDMI Matrix 4-in 2-Out
Full HD 1080p
HDMI Version 1.4A, support Full 1080p 3D
Support Single Link Resolution from 2560 x 1600 to 4096 x 2160 @ 60Hz
Support CEC passthough. (Based on Output 1)
The ABtUS MAX-HDMI42/AP4 HDMI Matrix Switcher provides the most cost effective and simple HDMI switching solution in the market, Full HD Video and Audio can now be switched onto 2 different displays with lossless quality. The switcher also supports all Full HD 3D formats of HMDI 1.4A as well as resolution from 2560 x 1600 to 4096 x 2160 @ 60 Hz.
With the upmost 30/36 bit deep color video and high definition audio support, this switcher is suitable for high quality HDMI 1.4 broadcasting, digital signage and showroom applications.
Features
-
Full HD 1080p
-
HDMI Version 1.4A, support Full 1080p 3D
-
Support Single Link Resolution from 2560 x 1600 to 4096 x 2160 @ 60Hz
-
Support CEC passthough. (Based on Output 1)
Technical Specs
| INPUT | 4 × HDMI (*Type A 19pin female) |
| OUTPUT | 2 × HDMI (*Type A 19pin female) |
| CONTROL PORT | RS-232 |
| HDMI COMPLIANCE | 1080p 60Hz version 1.4A |
| HDCP COMPLIANCE | Yes |
| VIDEO BANDWIDTH | Single-link 225MHz [9Gbps] |
| VIDEO SUPPORT | 2560 × 1600 to 4096 × 2160, Full HD 3D & 1080p @60Hz 36-bit color |
| AUDIO SUPPORT | Surround Sound (up to 7.1ch) or Stereo digital Audio |
| TRANSMITTER RANGE | Full HD (1080p) up to 15m (*AWG 24 HDMI cable) |
| INPUT DDC SIGNAL | 5 Volts [peak-to-peak, TTL] |
| ESD PROTECTION | [1] Human body model - ±15kV [air-gap discharge] & ±15Kv] [contact discharge] |
| POWER SUPPLY | 5V DC 1.2 |
